Car dashcams, GPS units, older digital cameras, and portable speakers usually charge and connect over one of two similar-looking legacy connectors: Mini-USB or Micro-USB. Because they share a similar width, many people assume they are interchangeable. They are not. Jamming the wrong plug into a port will bend internal pins and permanently ruin your device. Here is exactly how to tell Mini USB and Micro USB apart in seconds, followed by our compatibility guide for replacement power and audio cables in Singapore.
- Shape Differences: Mini-USB is thicker (3.0mm) with a distinct trapezoid notch; Micro-USB is ultra-thin (1.8mm) with two bottom latching teeth. They are completely incompatible with each other.
- Mini-USB Devices: Dashcams, GPS units (Garmin), older external hard drives, Texas Instruments calculators, and PS3 controllers.
- Micro-USB Devices: Bluetooth speakers, wireless mice, e-readers (Kindle), older Android phones, and IoT developer boards (NodeMCU/ESP8266).
- AUX + USB Y-Cables: Dual-purpose cables provide 3.5mm analog audio output and 5V USB charging simultaneously for portable audio gear.

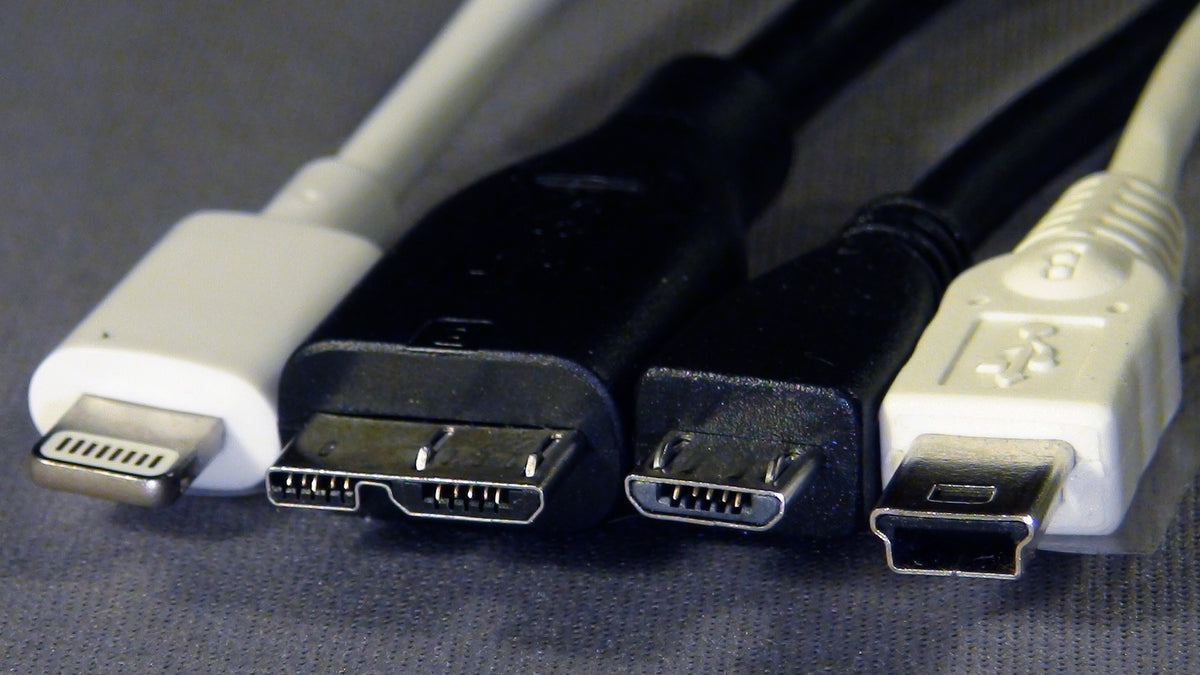

Mini USB vs Micro USB: How to Tell Them Apart
Although both were ubiquitous before USB-C took over, Micro-USB and Mini-USB are physically and mechanically incompatible. Attempting to force one into the other will permanently bend the internal contact pins or damage the port housing.
| Feature | Mini-USB (Mini-B 5-Pin) | Micro-USB (Micro-B) |
|---|---|---|
| Physical Shape | Thick, stepped trapezoid with side indents (~3.0 mm thick) | Ultra-slim flat top with two chamfered bottom corners (~1.8 mm thick) |
| Rated Durability | 5,000 insertion/removal cycles | 10,000 insertion/removal cycles (reinforced stainless shell) |
| Max Transfer Speed | USB 2.0 (480 Mbps) | USB 2.0 (480 Mbps) |
| Common Devices | Car dashcams, Garmin/TomTom GPS, PS3 controllers, TI-84 calculators, Blue Yeti mics | Older Android phones (Samsung S7 & older), Amazon Kindle, Bluetooth speakers, wireless earbuds |
Visual Inspection: The 3-Second Port Shape Test
Both are small, flat USB connectors found on older or budget electronics — but they're physically different shapes:
- Micro-USB has a thin, trapezoid-shaped port (approx. 6.85mm × 1.8mm) — this became the standard charging port on most Android phones, budget electronics, and portable speakers roughly 2010 onward.
- Mini-USB is slightly larger and more rectangular with two shallow notches on the sides (approx. 6.8mm × 3.0mm) — common on older digital cameras, MP3 players, GPS units, and pre-2012 electronics.
The safest way to be sure: look at the port on your actual device, or check the connector on the charging cable it originally came with — that will match one of the two below.
Got a Micro-USB device that also needs AUX audio out?
Our 2-in-1 Micro-USB Charging & 3.5mm AUX Audio Adapter Cable, powers your device over Micro-USB while sending audio out over a 3.5mm AUX jack — useful for portable speakers or older phones that need to stay charged while playing through a car stereo or amplifier.
Got a Mini-USB device instead?
Our 3-in-1 AUX Audio & Power Cable (USB-A to Mini-USB & 3.5mm Jack), does the same job for older Mini-USB devices — legacy media players, older cameras, and similar hardware that predates Micro-USB.
Different problem: your external hard drive keeps disconnecting
If what you're actually dealing with is a 2.5-inch external hard drive or SSD enclosure that clicks, disconnects, or fails to be recognised — that's usually not an audio problem at all. It's a power problem: a single USB port often can't supply enough current for the drive to run reliably.
Our USB 3.0 Dual Power Y-Cable (Micro-B), draws supplemental power from a second USB port to keep high-draw drives stable — no audio involved, just a stable connection for your data.
Quick comparison
| You have | You need | Price |
|---|---|---|
| Micro-USB device + want AUX audio out | 2-in-1 Micro-USB Charging & AUX Cable | S$2.99 |
| Mini-USB device + want AUX audio out | 3-in-1 AUX Audio & Power Cable (Mini-USB) | S$5.99 |
| External hard drive disconnecting/clicking | USB 3.0 Dual Power Y-Cable | S$5.99 |
Frequently Asked Questions
Is Mini USB the same as Micro USB? Can I plug one into the other?
No. Micro-USB and Mini-USB connectors have completely different physical dimensions and pin layouts. A Micro-USB cable is roughly 1.8 mm thick and will rattle loosely inside a 3.0 mm Mini-USB port without connecting, while a Mini-USB cable is too thick to physically enter a Micro-USB slot.
What devices still use Mini-USB in 2026?
Mini-USB remains common on car dash cameras, older standalone GPS navigation units (Garmin and TomTom), Texas Instruments graphing calculators (such as the TI-84 Plus CE), Sony PlayStation 3 (PS3) controllers, Blue Yeti and Blue Snowball USB microphones, and older DSLR cameras.
Is Mini-USB faster than Micro-USB?
No. Both standard Mini-B and Micro-B cables run on the USB 2.0 standard, providing identical maximum transfer speeds of 480 Mbps and 5V charging power. The transition to Micro-USB was driven by the need for a slimmer, more durable connector that could withstand 10,000 insertions for everyday smartphone charging.
How do I know if my device is Micro-USB or Mini-USB?
Check the port shape: Micro-USB is thin and trapezoid-shaped; Mini-USB is a bit wider with two side notches. If you still have the original charging cable, its connector will match one of the two exactly.
Can I use these cables for data transfer too?
No — the 2-in-1 and 3-in-1 AUX cables are for charging and audio only, not data. If you need to transfer files, you'll need a standard data-capable USB cable for your connector type.
Will the dual-power Y-cable definitely fix my hard drive's disconnecting issue?
In most cases, yes, if the cause is insufficient power from a single USB port — which is the most common reason. If your drive still disconnects after using it, the drive or enclosure itself may have a separate fault.
Do these cables work with USB-C devices?
No — these are specifically for Micro-USB and Mini-USB connectors. If your device uses USB-C, check our USB Hubs and Adapters collection for USB-C compatible options.
Moving to newer connections? Compare USB-C hubs and adapters or read the USB-C vs USB-A hub guide.
