Most household batteries are cylindrical 1.5V cells like AA or AAA. But when you need to power a safety-critical smoke detector, an electrician's digital multimeter, a studio wireless microphone, or an active guitar pickup, you encounter the distinctive rectangular 9V block battery.
Looking at the label on an old battery or device manual often reveals a bewildering alphabet soup of codes: 6LR61, 522, MN1604, PP3, 1604A, and 6F22. Are these different battery sizes? Are they interchangeable? And why do some 9V batteries cost $2 while others cost $6?
This guide decodes every common 9V battery code, explains the critical difference between alkaline and carbon-zinc chemistry, and shows you exactly which battery to buy for your equipment.
Quick Summary: The 9V Code Equivalents
- 6LR61 is the international IEC standard code for a standard 9V alkaline battery.
- 522 is Energizer's proprietary catalog code for 9V alkaline (Energizer MAX 522).
- MN1604 is Duracell's proprietary catalog code for 9V alkaline (Duracell Coppertop).
- PP3 is the British / Commonwealth audio standard for a 9V rectangular battery.
- 1604A is the ANSI/NEDA American standard for 9V alkaline.
- All 5 codes above are 100% physically and electrically interchangeable.
Master 9V Battery Comparison Table
Not all 9V batteries are built the same inside. Here is how the three main chemical types compare in capacity, shelf life, and leak resistance:
9V Battery Chemistry Comparison Guide
- Voltage / Build: 9.0V · 6 cylindrical cells in series
- Shelf Life: 5–10 Years
- Codes: Energizer 522 / Duracell MN1604 / GP 1604A
- Leak Risk: High resistance (steel jacket)
- Best For: Standard smoke alarms, wireless mics, multimeters
- Voltage / Build: 9.0V · 6 flat stacked wafer plates
- Shelf Life: 2–3 Years (Short)
- Codes: Energizer 216 / GP 1604S
- Leak Risk: Low resistance (Prone to acid leaks)
- Best For: Cheap toys only. DO NOT use in smoke alarms!
- Voltage / Build: 9.0V · 3 sealed lithium cells
- Shelf Life: 10–15 Years
- Codes: Energizer L522 Ultimate Lithium
- Leak Risk: Zero-leak sealed casing
- Best For: 10-year smoke alarms, high-ceiling alarms, outdoor IoT
The Big Trap: 6LR61 vs 6F22 Explained
If you buy an unbranded or budget "Heavy Duty" 9V battery from a neighbourhood hardware shop, chances are high that it is a 6F22 rather than a 6LR61.
Inside the metal casing, a 9V battery is not a single giant cell. It is made of six 1.5-volt cells wired together in series (6 x 1.5V = 9.0V):
- 6LR61 (Alkaline): The "LR" designates cylindrical alkaline cells. Inside are six miniature cylindrical batteries (very similar to tiny AAAA cells) packed with potassium hydroxide electrolyte. They hold ~600 mAh of energy, deliver high surge currents without dropping voltage, and are double-sealed against leaks.
- 6F22 (Carbon-Zinc): The "F" designates flat wafer cells. Inside are six flat rectangular plates stacked on top of each other using ammonium chloride or zinc chloride paste. They only hold ~150 to 200 mAh of usable capacity, their internal resistance spikes under load, and the outer zinc shell is consumed during discharge, making them prone to leaking corrosive acid into your battery compartment.
⚠️ Why 6F22 Fails in Smoke Alarms: Smoke detectors require a sharp pulse of high current every 30 to 45 seconds to test their optical/ionization sensor chamber. Because a 6F22 carbon-zinc cell has high internal resistance, its voltage drops sharply during these test pulses, causing the smoke detector to emit false "low battery" chirps in the middle of the night—even when the battery is brand new!
Device-by-Device Recommendation Guide

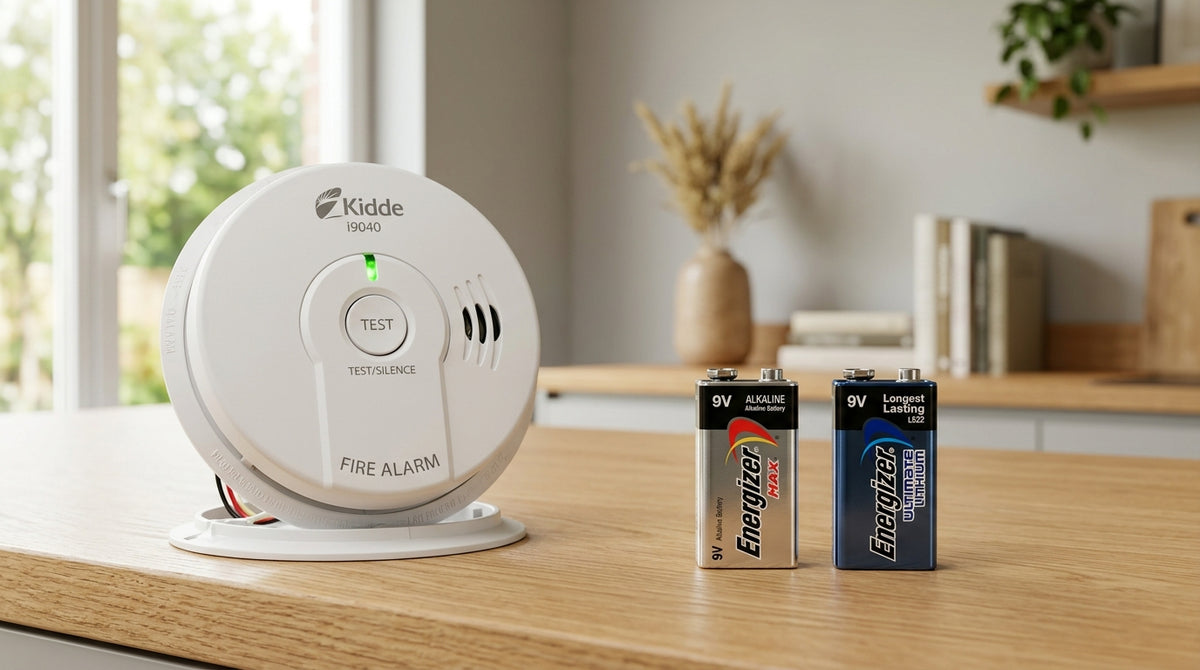

1. Smoke Alarms & Heat Detectors
Recommended: 6LR61 Alkaline (Energizer MAX 522) or 9V Lithium (L522)
Smoke detectors require an ultra-reliable power source that can sit dormant for 12 to 24 months, tolerate ceiling heat variations, and still have enough current reserve to blast an 85dB alarm horn. An alkaline 6LR61 like the Energizer MAX 522 provides a predictable, gradual discharge curve so the alarm's low-battery chirp triggers well before failure.
2. Digital Multimeters (Fluke, Uni-T, Kyoritsu)
Recommended: 6LR61 Alkaline (Energizer 522 or Duracell MN1604)
Precision test instruments use their 9V battery as an internal voltage reference for resistance (ohms) and continuity beepers. If you install a cheap 6F22, the voltage sags when the beeper sounds or backlight turns on, leading to measurement drift and erroneous resistance readings. Use alkaline 6LR61 to keep calibration sharp.
3. Guitar Pedals & Active Bass Pickups (Fishman, EMG)
Recommended: 6LR61 (PP3) Alkaline
In music gear documentation, 9V batteries are almost universally called PP3. Active guitar and bass preamps (EMG, Fishman Fluence) draw continuous low current whenever the 1/4-inch instrument cable is plugged into the jack. An alkaline 6LR61 ensures 50 to 100 hours of headroom without audio distortion or premature battery dying mid-gig.
4. Studio Wireless Microphones (Shure, Sennheiser)
Recommended: Premium 6LR61 Alkaline
RF wireless mic transmitters draw continuous current for both the audio preamp and radio frequency transmitter. A 6F22 will die within 1 to 2 hours, whereas an alkaline 6LR61 typically provides 6 to 9 continuous hours of rock-solid broadcast transmission.
5. Wall Clocks, Basic Door Chimes & Kids' Walkie-Talkies
Acceptable: 6F22 Carbon-Zinc (PKCELL 6F22 Extra Heavy Duty)
For low-drain non-critical gadgets that draw micro-amps, a high-quality mercury-free 6F22 carbon-zinc battery is completely adequate and significantly cheaper. Just remember to replace it every 12 months to avoid old cell corrosion.
Frequently Asked Questions
Q: Is a 6LR61 battery the exact same as a 9V battery?
Yes. 6LR61 is the official international IEC (International Electrotechnical Commission) designation for a standard 9-volt alkaline battery. When a device manual asks for a 6LR61, you can use any standard 9V alkaline battery from Energizer, Duracell, GP, or Panasonic.
Q: What is the difference between Energizer 522 and Duracell MN1604?
There is zero physical or operational difference. 522 is Energizer's proprietary catalog part number, while MN1604 is Duracell's designation (combining "MN" for Mallory NEDA with ANSI code "1604"). Both deliver 9V output, use identical snap terminals, and are 100% interchangeable.
Q: What does "PP3" mean on guitar pedals and audio equipment?
PP3 (Power Pack 3) is the British and Commonwealth standard designation for a rectangular 9V battery. Audio and musical instrument brands like Boss, Dunlop, Fishman, and Shure commonly list PP3 in their instruction sheets. You can replace any PP3 battery with an alkaline 6LR61, 522, or MN1604.
Q: Why should I avoid 6F22 batteries in smoke detectors?
6F22 batteries use carbon-zinc chemistry with less than half the capacity (~200 mAh vs ~600 mAh for 6LR61 alkaline). Under the periodic test pulses of a smoke detector, the voltage in a 6F22 drops abruptly, triggering false low-battery chirping within weeks. Always use a 6LR61 alkaline or lithium cell for smoke detectors.
Q: Can I use a rechargeable 9V (NiMH or Li-ion) in a smoke alarm?
No, it is strongly discouraged by fire safety standards. Rechargeable batteries have higher self-discharge rates, and their voltage drops off a cliff when depleted rather than following the gradual downward slope required to trigger early warning chirps. Stick to primary alkaline 6LR61 or 10-year lithium 9V batteries.
